Incubators, Laboratory Equipment
9010-0315,9010-0316 BF 115 Incubator, 115L Binder
The BINDER incubator series BF Avantgarde.Line with forced convection is ideal for all delicate incubation applications, especially at full load and with high load indexes
$3,820.00 – $3,849.00
The BINDER incubator series BF Avantgarde.Line with forced convection is ideal for all delicate incubation applications, especially at full load and with high load indexes. This incubator stands out for its extraordinary homogeneity and the speed of its times of recovery.
Important characteristics
- Temperature range: ambient temperature plus 8 °C to 100 °C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
| Designation | BF115-230V¹ | BF115UL-120V¹ |
| Option model | Standard | Standard |
| Order number | 9010-0315 | 9010-0316 |
| Measures | ||
| Interior volume [L] | 114 | 114 |
| Net weight of the unit (empty) [kg] | 54 | 54 |
| permitted load [kg] | 150 | 150 |
| Load per rack [kg] | 30 | 30 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 550 | 550 |
| Height [mm] | 550 | 550 |
| Depth [mm] | 380 | 380 |

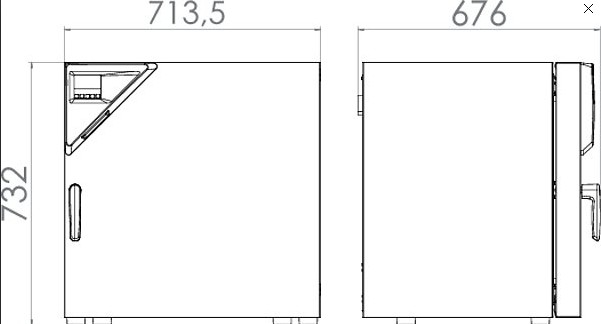

| Outer dimensions | ||
| Width net [mm] | 710 | 710 |
| Height net [mm] | 735 | 735 |
| Depth net [mm] | 605 | 605 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 160 | 160 |
| Environment-specific data | ||
| Energy consumption at 37 °C [Wh/h] | 60 | 60 |
| Sound-pressure level [dB(A)] | 43 | 43 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/5 | 2/5 |
| Performance Data Temperature | ||
| Temperature range 8 °C above ambient temperature to [°C] | 100 | 100 |
| Temperature variation at 37 °C [± K] | 0.3 | 0.3 |
| Temperature fluctuation at 37 °C | 0,1 ± K | 0,1 ± K |
| Heating-up time to 37 °C [min] | 8 | 8 |
| Recovery time after 30 seconds door open at 37 °C [min] | 3 | 3 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 230 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 0.4 | 0.4 |
| Unit fuse [A] | 6.3 | 12.5 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | 9010-0316(BF 115 Incubator, 115L, 120V/60Hz), 9010-0315(BF 115 Incubator, 115L, 230V/50-60Hz) |
