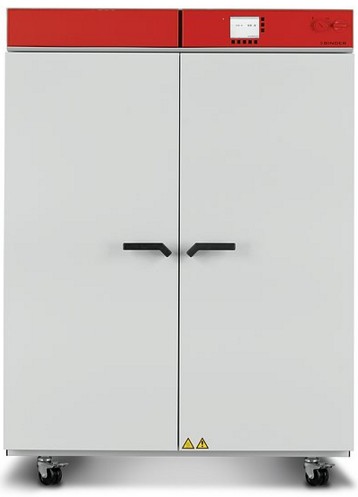

9010-0205 M 720 Drying/Heating Chamber with forced convection and advanced program functions, 720L, 400V/50-60 Hz/3 ph Binder


Compare

With a maximum of 300 °C and various programming options the M series material test chambers are ideal for material and aging test.

$19,883.00

With a maximum of 300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air
flow, the powerful fans ensure rapid heating.

  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line™ preheating chamber technology
  • Adjustable fan speed
  • Program-controlled ventilation flap
  • Color LCD controller with time-segment programming

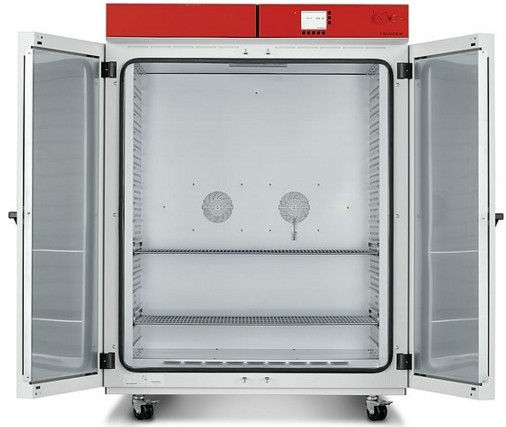

  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422
Designation M720-400V¹
Option model Standard
Order number 9010-0205
Measures
Interior volume [L] 720
Net weight of the unit (empty) [kg] 203
permitted load [kg] 120
Load per rack [kg] 45
Internal Dimensions
Width [mm] 1000
Height [mm] 1200
Depth [mm] 610

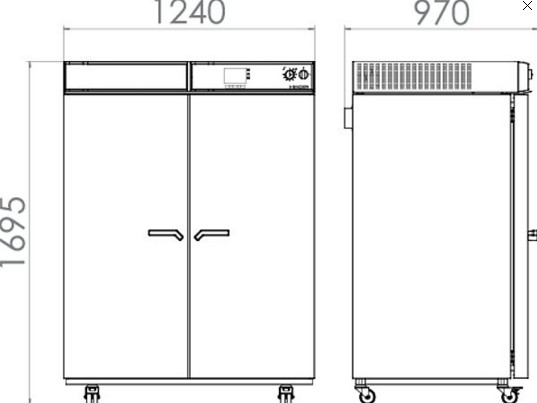

Outer dimensions
Width net [mm] 1235
Height net [mm] 1690
Depth net [mm] 865
Wall clearance back [mm] 160
Wall clearance sidewise [mm] 100
Environment-specific data
Energy consumption at 150 °C [Wh/h] 1320
Fixtures
Number of shelves (std./max.) 2/16
Performance Data Temperature
Temperature range 5 °C above ambient temperature to [°C] 300
Temperature variation at 150 °C [± K] 1.9
Temperature fluctuation at 150 °C [± K] 0.3
Heating-up time to 150 °C [min] 21
Recovery time after 30 seconds door open at 150 °C [min] 3
Air change data
Air change (approx.) at 150 °C [x/h] 36
Electrical data
Rated Voltage [V] 400
Power frequency [Hz] 50/60
Nominal power [kW] 5
Phase (Nominal voltage) [ph] 3
SKU: 9010-0205 Categories: , Tags: , , Brand:
Weight 447.6 lbs
Dimensions 34.1 × 48.7 × 66.6 in
