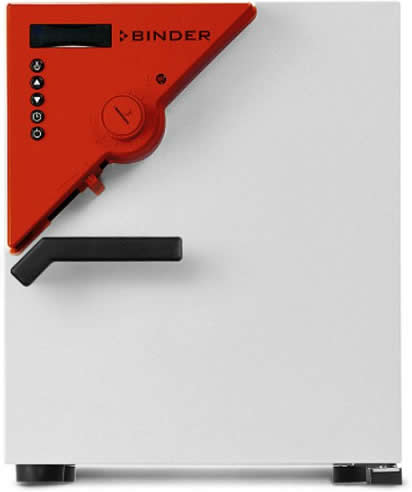

9010-0187,9010-0189 Incubators Classic.Line with natural convection BD 23 Binder
The BINDER incubator of the BD series with natural convection is the specialist in long-term and stable continuous operation.
$2,458.00
The BINDER incubator of the BD series with natural convection is the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
Important characteristics
- Temperature range: room temperature plus 5 °C to 100 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
- Computer interface: RS 422
| Designation | BD023-230V | BD023UL-120V |
| Option model | Standard | Standard |
| Order number | 9010-0187 | 9010-0189 |
| Measures | ||
| Interior volume [L] | 20 | 20 |
| Net weight of the unit (empty) [kg] | 27 | 27 |
| permitted load [kg] | 25 | 25 |
| Load per rack [kg] | 12 | 12 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 222 | 222 |
| Height [mm] | 330 | 330 |
| Depth [mm] | 277 | 277 |

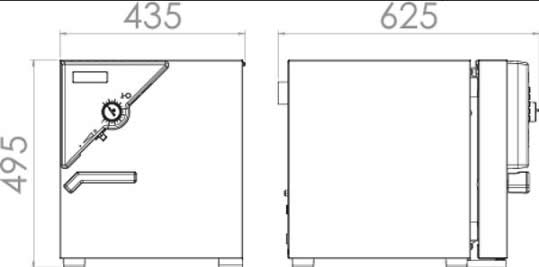

| Outer dimensions | ||
| Width net [mm] | 435 | 435 |
| Height net [mm] | 495 | 495 |
| Depth net [mm] | 520 | 520 |
| Wall clearance back [mm] | 160 | 160 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Environment-specific data | ||
| Energy consumption at 37 °C [Wh/h] | 11 | 11 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/4 | 2/4 |
| Performance Data Temperature | ||
| Temperature range 5 °C above ambient temperature to [°C] | 100 | 100 |
| Temperature variation at 37 °C [± K] | 0.5 | 0.5 |
| Temperature fluctuation at 37 °C | 0,2 ± K | 0,2 ± K |
| Heating-up time to 37 °C [min] | 59 | 59 |
| Recovery time after 30 seconds door open at 37 °C [min] | 20 | 20 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 120 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 0.2 | 0.2 |
| Unit fuse [A] | 12.5 | 12.5 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 59.6 lbs |
|---|---|
| Dimensions | 20.5 × 17.2 × 19.5 in |
| Product | 9010-0187, BD023-230V, 9010-0189, BD023UL-120V |
