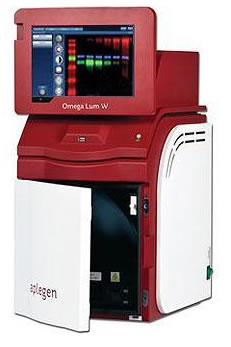

81-12120-00, Omega Lum™ W Imaging System Gel Company


Compare

The Omega Lum W offers all the advantages of the Omega Lum C, plus the ability to do multiplex imaging in the Red, Green, and Blue Channels. Image multiple proteins simultaneously without having to strip and re-probe, or get better resolution of closely resolved bands.

$35,211.00

A New Perspective on Western Blot Imaging

The Omega Lum W offers all the advantages of the Omega Lum C, plus the ability to do multiplex imaging in the Red, Green, and Blue Channels. Image multiple proteins simultaneously without having to strip and re-probe, or get better resolution of closely resolved bands. All with Aplegen’s excellent performance, small footprint and economical pricing

Features & Benefits

  • 3 channel capability for Multiplex imaging
  • Quantify, not just qualify
  • Wide dynamic range for accurate quantification of low and high abundant samples in the same image
  • Optimized camera and optics design for highest sensitivity and signal capture
  • Fully automated western blot and gel imaging
  • SmartCapture Technology™ eliminates filter selection and focus adjustment
  • Image your chemiluminescent blots easier than film
  • Publication-quality images and thermal printer capability
  • 65,536 grayscales with over 8 million pixels for excellent resolution
  • Universal TIFF and JPEG file formats
  • Small footprint, large format
  • Compact footprint fits right on your bench top
  • Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)

Imaging Area: up to 15.0 x 20.0 cm

Specifications
Applications Chemiluminescence, UV Fluorescence, Colorimetry, Densitometry, RGB Multiplex Imaging, Gel Documentation
Dye Compatibility SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ SYPRO Ruby, Pro-Q Diamond, Pro-Q Emerald 300, Pro-Q Emerald 488, Krypton, Chemi, Chemi Hi Senstivity, Dylight 488, Dylight 549, Dylight 649, Dylight 680, Chemi Hi Resolution, Stain-Free Blot, Colorimetric, Rhodamine, Fluorescein, IRDye 680, Cy2, Cy3, Cy5, Cy5.5, Alexa 488, Alexa 546, Alexa 647, Alexa 680 , Qdots 525, Qdots 605, Qdots 625, Qdots 705
Hardware 8.4MP scientific grade CCD camera with auto focus F0.95 lens (16-bit or higher, Pixel size H x V 6.45 x 6.45 microns, Pixel density gray levels 65,535), 50o C ambient cooled camera, integrated tablet with pre-installed Image Capture Software
Software Customizable Omega Lum W Image Capture Software, UltraQuant Analysis Software, Total Lab Analysis Software
Excitation Trans-UV (dual wavelength), Trans-white conversion screen, Epi-white LEDs, Epi-blue LEDs, EPI LEDs at 457, 530 and 628nm
Emission Orange, Red, Green and Blue filters (Included)
Dimensions (W x D x H) 12.5 x 18.0 x 24.0 inches (31.8 x 45.7 x 61.0 cm)
Weight 75.0 lbs (34 kg)
SKU: 81-12120-00 Categories: , Tags: , Brand:
Weight 75 lbs
Dimensions 18 × 12.5 × 24 in
