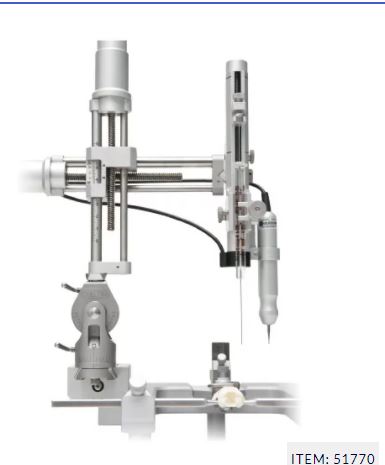

51770-Robotic Stereotaxic for both Rats and Mice- Stoelting


Compare

$19,115.00

Clear

Description

The innovative design of our Rat/Mouse Stereotaxic Instrument provides users with the ability to perform surgeries on both Mice and Rats on the same base. Motorizied versions of these Stereotaxics include customized motors and the state-of-the-art StereoDrive software to allow motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes. The intuitive movement control and integrated stereotaxic atlas enables unprecedented accuracy and higher throughput in all stereotaxic applications.

Overview

Like the classic Lab Standard™, the NEW Standard Stereotaxic Instrument has larger laser engraved vernier scales (accurate to 100 um), 80 mm of ventral-dorsal, medial-lateral and anterior-posterior travel, absolute lock at 90° ventral-dorsal and brass-bushings for electrical grounding. It is available as a digital or motorized model.

But the NEW Standard “design” is what sets it apart:

  • Revolutionary vertically-adjusting ear and nose bar posts
  • Revolutionary horizontally-adjusting ear and nose bar posts
  • Designed for both Rats and Mice all on the same base
  • No U-frame, maximizes operating space
  • Traditional and non-traumatic Rat ear bars
  • Includes the innovative Mouse ear bars
  • Includes Mouse and Rat Nose adaptors

Includes the innovative Mouse ear bars

Includes Mouse and Rat nose adaptor

51500 Bite Bar

Includes dual tip ear bars with traumatic (18°) and non-traumatic (45°) ear bars

Close-Up of The New Standard Stereotaxic

51500 close up



Motorized

Designed to adapt conventional stereotaxic systems, the StereoDrive software allows motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes.

Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, for either rat or mouse, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications.



Features:

 Digital Atlas integration

  • Frame representation
  • Calibration of frame coordinates
  • Setting of logical coordinate system (Bregma)
  • Coordinates and Atlas visualization of the probe
  • Advanced 3D visualization options
  • Spatial Atlas representation
  • Intuitive probe control
  • Intuitive navigation

Axial View                                 Coronal View                            Sagittal View                           Working View

Motorized Upgrade

Your choice of two service options:



  • Option 1: New Motorized Manipulator Arm and Axis StereoDrive Software
    Keep your existing arm. We’ll ship you a new one.
  • Option 2: Conversion to Motorized Manipulator Arm and Axis StereoDrive Software
    Send us your existing arm. We will convert it to motorized for you.

Technical Specification:

Motorized Stereotaxic Software Sampler
The StereoDrive software display is divided into the navigation section on the left and the 3D atlas view on the right side of the window.
Software Image 51700

1. Atlas View

2. Actual position of the probe (logical or physical)

3. Axial view thumbnail — indicating the movement in anterior-posterior (X-axis) or medio-lateral (Y Axis) direction

4. Coronal view thumbnail — indicating the movement in medio-lateral (Y-axis) or inferior-superior (Z Axis) direction

5. Anterior-posterior (X) drive control region

6. Medio-lateral (Y) drive control region

7. Inferior-superior (Z) drive control region

8. Actual coordinates of the probes tip

9. Editable target coordinates of the probes tip

10. Stop button

 11. GoTo button

 12. Set Lambda button — setup of the logical coordinate system

 13. Set Bregma button — setup of the logical coordinate system

 14. Tools — access to the microdrive calibration (frame coordinate system)


The 51707 Robot Drill and Microinjector System, Rat includes the following:

1 ea. 51700 Motorized Lab Standard Stereotaxic Inst., Rat with StereoDrive software and controller

1 ea. 58643 Robot Drill & Injection Bundle for Motorized Stereotaxic Systems

1 ea. 51749 Robot Drill AutoStop Function, ADD ON

Optional

1 ea. 51722 Laptop Computer for Motorized/Robot Stereotaxic Instruments

Detail

Motorized StereoDrive Software
Included with Motorized Lab Standard™ Stereotaxic

The StereoDrive Software integrates seamlessly with the precision controlled motors. Motor movement can be executed by using the keyboard arrow keys or clicking on the screen with the mouse.

The software coordinates motor movement of all 3 axes (anterior-posterior, medial-lateral, and dorsal-ventral) probe placement in relation to 3-dimensional visual representation of a rat (Paxinos & Watson, 6th Edition) or mouse (Watson, 3rd edition) Brain Atlas.

Features

  • Easy calibration
  • Software-driven control of stereotaxic movement
  • Virtual visualization of probe location
  • One micron resolution
  • Download coordinates to computer for recall and/or archiving
  • Angle adjustments
  • Variable speed on 2-axis (dorsal-ventral)

 The Motorized Lab Standard Stereotaxic combines the classic design of our time-proven ”U”-Frame with customized motors and state-of-the-art software.Designed to adapt conventional stereotaxic systems, the StereoDrive software allows motorized, computer controlled stereotaxic positioning in all 3 orthogonal axes.

Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications

Image manipulations include:

  • Spatial Rotation
  • Fixed Rotation
  • Zooming
  • Panning

Detail

Motorized StereoDrive Software
Included with Motorized Stereotaxics

Axis StereoDrive Software integrates seamlessly with the precision controlled motors. Motor movement can be executed by using the keyboard arrow keys or clicking on the screen with the mouse.

The software coordinates motor movement of all 3 axes (anterior-posterior, medial-lateral, and dorsal-ventral) probe placement in relation to 3-dimensional visual representation of a rat (Paxinos & Watson, 6th Edition) or mouse (Watson, 3rd edition) Brain Atlas.

Features

  • Easy calibration
  • Software-driven control of stereotaxic movement
  • Virtual visualization of probe location
  • One micron resolution
  • Download coordinates to computer for recall and/or archiving
  • Angle adjustments
  • Variable speed on 2-axis (dorsal-ventral)

 Integrated with Paxinos and Watson’s Rat Brain in Stereotaxic Coordinates, the intuitive movement control enables unprecedented accuracy and higher throughput in all stereotaxic applications

Image manipulations include:

  • Spatial Rotation
  • Fixed Rotation
  • Zooming
  • Panning
Product

51770(Robotic Lab Standard with Mouse and Rat Adaptors)
