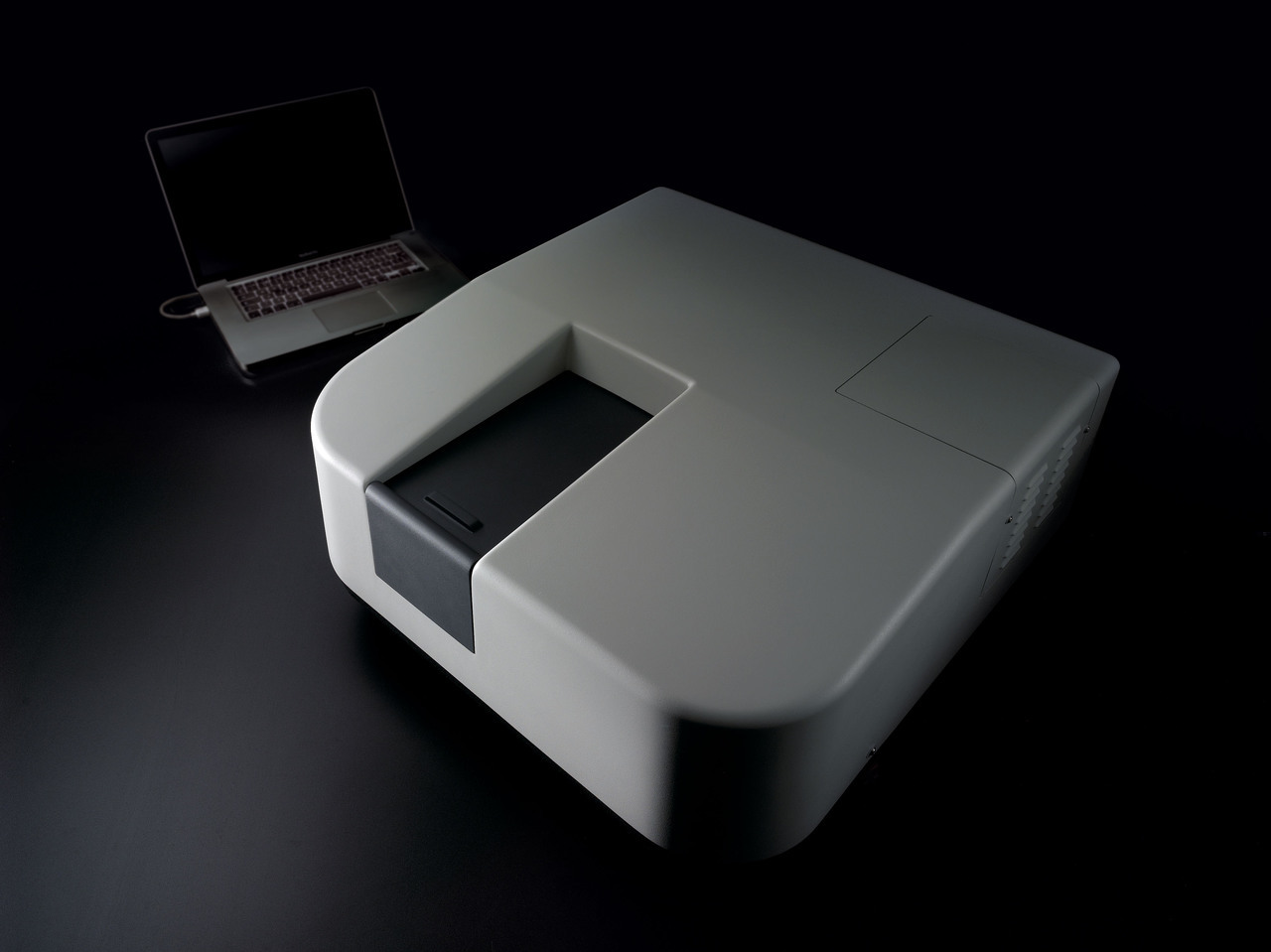

1901, T8DS Double Beam UV-Vis Persee


Compare

T8DS is a high performance double beam scanning spectrophotometer with a variable spectral bandwidth.

T8DS is a high performance double beam scanning spectrophotometer with a variable spectral bandwidth.

The Czerny-Turner Monochromator with a holographic grating keeps stray light at a minimum and offers excellent optical resolution.

The use of a photomultiplier tube as detector delivers exceptional sensitivity.

The true double-beam optical system coupled with an efficient and well proven electronic control system ensures high stability and low background noise.

Key Features

  • Czerny-Turner Monochromator with high resolution holographic grating
  • High performance variable (0.1, 0.2, 0.5, 1.0, 2.0, 5.0nm) spectral bandwidth
  • High resolution, excellent performance, long term stability
  • Additional accessories for multi-application, support the ultra-volume cuvettes
Specifications
Optical system Double beam
Scan speed Selectable
Wavelength range 190-1100 nm
Wavelength accuracy ±0.3 nm
Wavelength reproducibility ≤0.1 nm
Spectral bandwidth

0.1, 0.2, 0.5, 1.0, 2.0, 5.0 nm

Photometric mode Transmittance, Absorbance, Energy Concentration, all using UVWin software
Photometric range -4.0-4.0 Abs
Photometric accuracy 0.002 A (0-0.5 A), 0.004 A (0.5-1 A), 0.3 %T (0-100 %T)
Photometric reproducibility 0.001 A (0-0.5 A)
Photometric noise 0.0004 A (500 nm, 30min warm-up)
Baseline flatness 0.001 A (200-850 nm)
Baseline stability 0.0008 A/h (500 nm, 0 Abs, 2hrs warm-up)
Stray light ≤0.12 %T (220 nm NaI, 340 nm NaNO2)
Standard functionality Photometric, Quantitative, Spectrum and DNA measurements
Cell holder Fixed position sample and reference
Detector Photo multiplier tube
Light source Tungsten Halogen and Deuterium arc lamps
Display No display
Printer Not available
PC interface RS232, USB
Software support UV Win
Power supply Switch mode 120-230 VAC 50-60 Hz
Weight 95 lb
Dimension 21.5 x 23 x 11 in
MODEL PART NO DESCRIPTION
T8DS 1901 True double beam UV-Vis Spectrometer with fixed cell holder, 190-900nm, variable 0.1,0.2,0.5,1.2,5nm bandwidth, PC controlled
SKU: 1901 Categories: , Tags: , , Brand:
Weight 95 lbs
Dimensions 21.5 × 23 × 11 in
